RTS300 Wireless Broadcast Video and Audio |
| |
|
|
RTS300 wireless broadcast video and audio real-time transmission system is a system which made use of CDMA network, CDMA-3X technology with real-time transmission, broadcast-quality video and audio streams. RTS300 system uses 3-channels CDMA to transfer the data, and adopts the most advanced H.264/AVC codec technology for data compression,it can automatically change according to changes in the network data compression rate and transmission rate to ensure that video and audio streams in the transmission fluid and integrity. |
| System has a transmission image is clear, transmission of
low cost, small size, low power consumption, easy operation, by
using the environmental constraints of small to support a variety
of ways video and audio signal input, the transmission distance
limit and so on; while saving the cost of network cabling, speed up the construction of various types of monitoring project cycle, saving resources. It can be widely used in live television news
broadcasting industry, real-time broadcast, the scene of criminal investigation, fire scene, traffic management, water monitoring, industrial factories, mines and monitoring and other
Fields. |
|
|
| |
| The Features of the Product |
√ |
|
Distance is unrestricted (in a CDMA network coverage area). |
√ |
|
Transmission bandwidth maximum up to 450KB / s (using
CDMA module). |
√ |
Movement speed up to 120Km/h. |
√ |
|
Propagation delay <3 seconds. |
√ |
|
Adopts H.264/AVC hardware codec technology, fast response. |
√ |
|
Addressing the use of international advanced encryption
technology to ensure transport security. |
√ |
|
Portable industry design, low power consumption, easy to
operate, resistant to the bad environment, free from
constraints of the terrain to meet the flexible application. |
| |
|
|

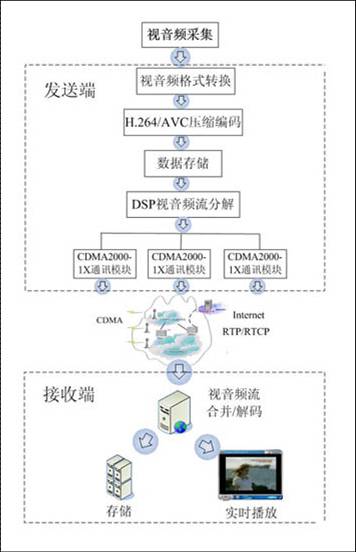

| System Diagram |
| |
 |
|
| |
|
| Specification |
Physical Features |
√ |
|
Input signal: USB2.0、S-Video、AV |
√ |
|
Volume: 135mm × 120mm × 56mm
|
√ |
|
Image Format: >= 320×240 |
√ |
|
|
√ |
|
Image system: PAL |
√ |
|
|
√ |
|
Video frame rate： >=18 frames/second (by the |
√ |
|
Working hours: 2h (with battery)
|
|
|
impact of network conditions) video from rate. |
√ |
|
Operating temperature: +5℃～+50℃
|
√ |
|
Audio Channels: left & right channels |
√ |
|
Environmental temperature: 80%～95% |
| |
|
|
|
|
|
| |
|
|
|
| |
