TBC100 Time Base Corrector/Frame Synchronizer |
| |
TBC100 is a broadband controller with time base correcting and frame synchronizing functions, and can provide more accurate and convenient solutions to the time base error created by non-standard television signals. With the help of this product, the problems such as video image distortion, dithering, asynchronies, instability , logo superposition will be no longer possible, and the signals can be gen-lock and switched without jitter. What is more, there will be no black burst when the signals were interrupted. It can be widely used in the television post-production, satellite TV receivers, live broadcasting, synchronous video broadcast systems and so on. Users may enjoy its full functionalities with stable performance and convenient updating & maintenance. |
| |
|
|
| |
|
| |
|
|
| The backside of the product |
|
TBC100 Time Base Corrector/Frame Synchronizer The back interface： GENLOCK × 2、
S-Video Oouput × 1、COMP Output × 2、COMP Input × 1、S-Video Input × 1、RS232、Power Input. |
|
|

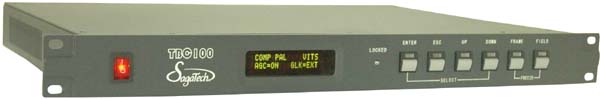

| The face of the product |
|
|
|
|
| The Features of the Product |
√ |
|
Introduce digital adaptive comb filter |
√ |
|
Special circuit design, search VTR image with high speed |
√ |
|
External Gen-lock |
√ |
|
Drop vertical blanking interval teletext information |
√ |
|
Adjustable video brightness, contrast, chroma, horizontal position ,H phase, SCphase |
√ |
|
With function of automatic gain controlling |
√ |
|
With function of power off though |
√ |
|
With import touching switch |
|
| Video Index |
Physical Features & Environmental Requirements |
√ |
|
Input Signal ：
PAL composite video, 2Vp-p, 75ΩBNC |
√ |
|
Output Signal：PAL
composite video，2Vp-p, 75Ω BNC |
√ |
|
Video Resolution ：
9 Bits sample output |
√ |
|
Video Sample Frequency：13.5MHz |
√ |
|
Video Processing：4:2:2:2 |
√ |
|
Signal to Noise Ratio：>58 dB(weighted) |
√ |
|
Differential Phase ：<1.5
o
|
√ |
|
DG Differential Gain ：<1.5% |
√ |
|
Bandwidth ：>5.5MHz |
√ |
|
External Synchronization ：
PAL analog composite video signal
|
√ |
|
K Factor (2T Pulse) ：<1.5% |
|
√ |
|
Input Connector ：4 Y/C & BNC |
√ |
|
Output Connector ：4 Y/C & BNC |
√ |
|
|
√ |
|
Power Consumption ：20W |
√ |
|
Operating Temperature ：0～40oC(32～104oF) |
√ |
|
Moisture ：5～95%（
non condensation） |
√ |
|
Dimension(D×W×H)：325mm × 427mm × 44mm |
√ |
|
Weight：4 Kg |
|
|
